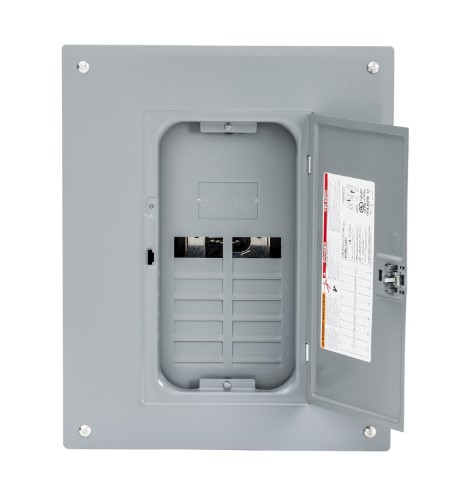

Homeline 125 Amp 8-Space 16-Circuit Main Lugs Plug-on with Cover

Homeline 125 Amp 8-Space 16-Circuit Main Lugs Plug-On with Cover with cover for Plug-on Neutral breakers is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline load centers are engineered for fast installation and wire savings.Product Details: Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space. Each pole space accepts full-size, tandem or quad breakers. Ground and neutral bars accept up to (3) #10-14 equipment grounds. Includes a combination flush/surface mount cover and is convertible to a main breaker load center with a QOM1 main breaker. Accommodates plug-on secondary surge arrestor (sold separately). Overhead/underground feed simply by rotating the device before installing. Single phase. Rated 120/240 VAC and 10,000 AIR short circuit current rating. Automatic flush adjusting cover requires less time to complete the job. Designed with straight-in mains to save expensive cable and time. Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring. Thermoplastic interior assembly is among the most rugged in the industry. Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque. For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw. 3 ground bar mounting locations (left, right and end) let you pick the easiest spot to wire. Made in the USA. Dimensions: Load center dept: 3.75". Load center height: 17.92". Load center width: 14.25".
