Todos los productos
ELECTRIC
SWITCHES
SWITCH SENC.20AMP BLANCO
SWITCHES
Lista de precios:
Precios
Lista de precios
Precios
Lista de precios:
Precios
Lista de precios
Precios

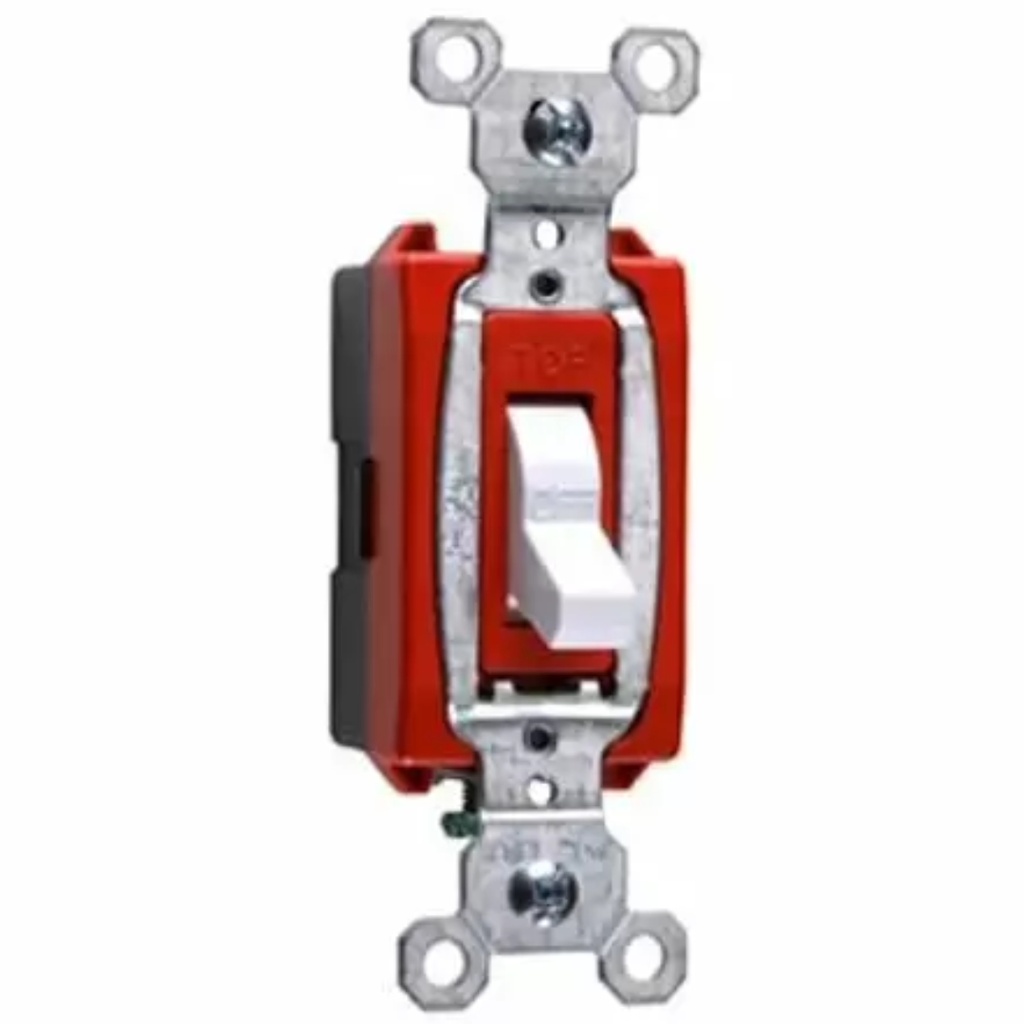

SWITCH SENC.20AMP BLANCO
Commercial 1-Pole Switch Side-Wire 20A 120/277V One-piece brass alloy contact arm for reliable electrical performance. One-piece steel strap with integral ground is plated for corrosion resistance. High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse. Heavy-duty toggle bumpers for smooth and quiet operation. Back body made of glass-reinforced nylon. Locking support provides resistance to face and back body separation. Available with side wire or external screw-pressure-plate back and side wire models capable of accepting #14 - #10 AWG copper or copper-clad wire. Cam designed for fast make with positive break action to minimize arcing and prolong switch life. Oversized silver alloy contacts for longer dependable switch life. Tri-drive terminal and mounting screws. For covering patents see www.legrand.us/patents. For compatible wall plate options from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates click here. Spec SheetSpec Sheet Info Product Line Pass & Seymour Color White Application Sector Commercial Standard UL 498/20 Additional Info Actuator Toggle Contact Rating 20Amp 120/277Vac Amperage 20 A Action Single pole Number of Poles Single Pole Voltage 120 V.
$
3.95
$
3.95
Añadir a la cesta
Comprar ahora
Contáctenos
Referencia interna:
450009682
